ZDP950
Well protected hand held remote control incorporates a micro lattice screen, it can display clearly under extreme weather conditions;
Controller has both water cooling and heating systems, is very strong adaptability to the environment.
PDF Download- Specification
- You may also like

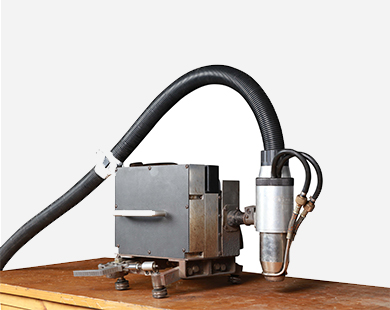

Automatic Welding System ZDP950:
Bug Size: 512x 350 x 315mm
Weight including torch: 13kg
Vertical Work Capacity: 50mm
Horizontal Work Capacity: 50mm
Angle Adjustment Scope: ±45°
Swing Frequency: 240 OSC/min
Swing Adjustment: 0~30mm
Left or Right Dwell Time: 2s
Wire Feeding Speed: 1.3~19.8m/min
Walk Speed: 0~1.6m/min
Angle Sensor: 360°±0.1
Wire Feeding Motor: code control
Travel Motor: code control
Horizontal Motor: step motor
Minimum Applicable Pipe Size: 168mm
Welding Method: Single Wire
Working Temperature: -40°C ~+75°C
